Structural Strength and Stability - Mind Map

Structural Strength and Stability

loads

static loads

live load

a car driving over a bridge is a live load

dead load

a dead load is a non moving load

static loads don't change in size

Dynamic Load

a dynamic load is a load that can change size like wind

external forces

Plane of Application

the plane of application is the angle that the force is applied

Point of Application

the point of application is where a forces is applied on a horizontal line

Direction

direction is the way a forces pushes

Magnitude

Magnitude is how big the force is

Strengthening Structures

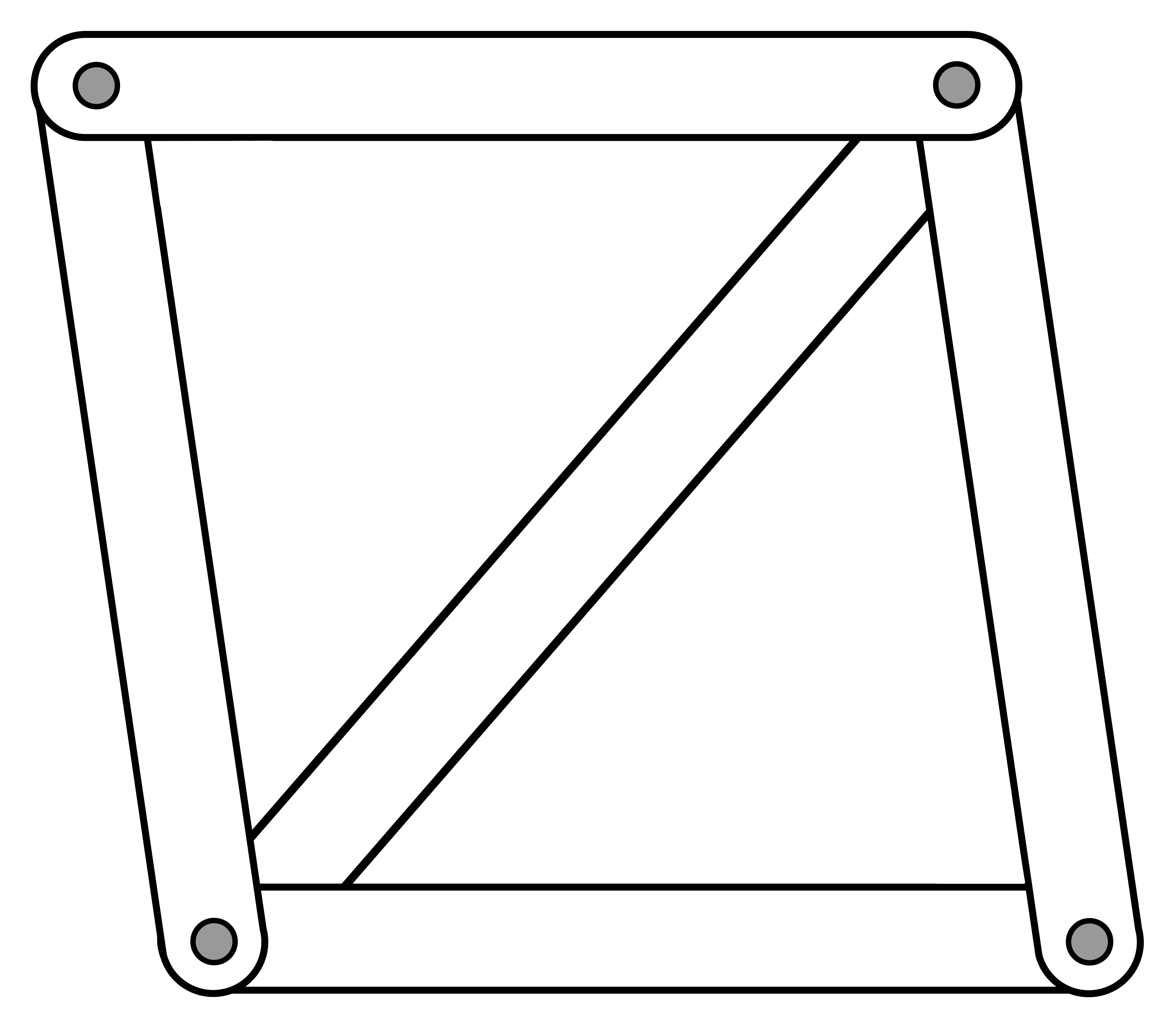

triangles

truss

Truss are triangles that improve stability

gusset

Gussets are triangles that improve stability on joints

curves

arch

An arch is a curved structure

ties

ties resist torsion forces

struts

struts resist compression forces

Corrugation

corrugation uses arches or triangles to make something stronger with out adding muck weight

Lamination

lamination uses layers stuck together something stronger

internal forces

tension

tension happens when two forces pull away from each other

Torsion

Torsion is a twisting force

shear

Shear is a cutting force

compression

compression happens when two forces push together

stability

stable

A stable structure won't fall

unstable

An unstable structure's center of gravity is out side of the base of support

center of gravity

the point on a structure that the weight is perfectly balanced

base of support

the base of support is the area of the structure that surrounds the center of gravity
